San Carlos BioPower

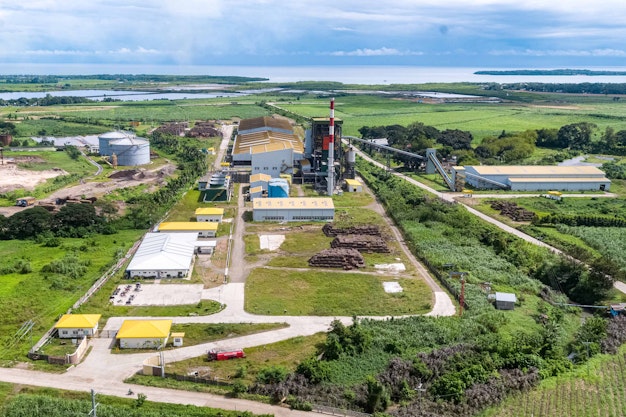

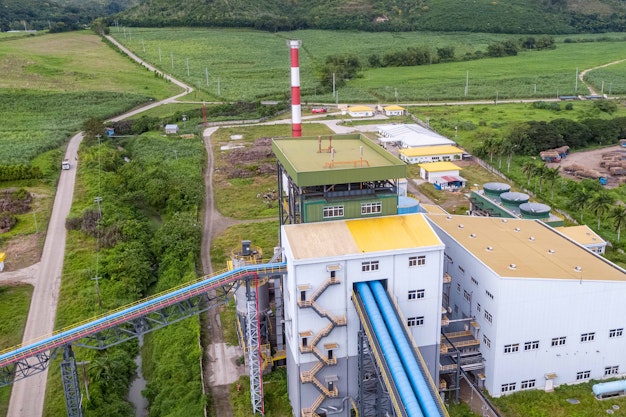

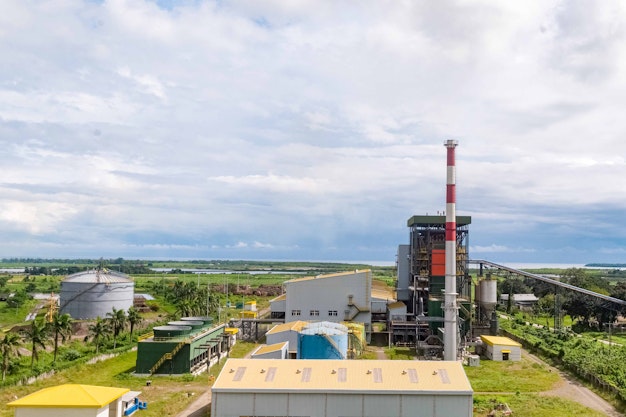

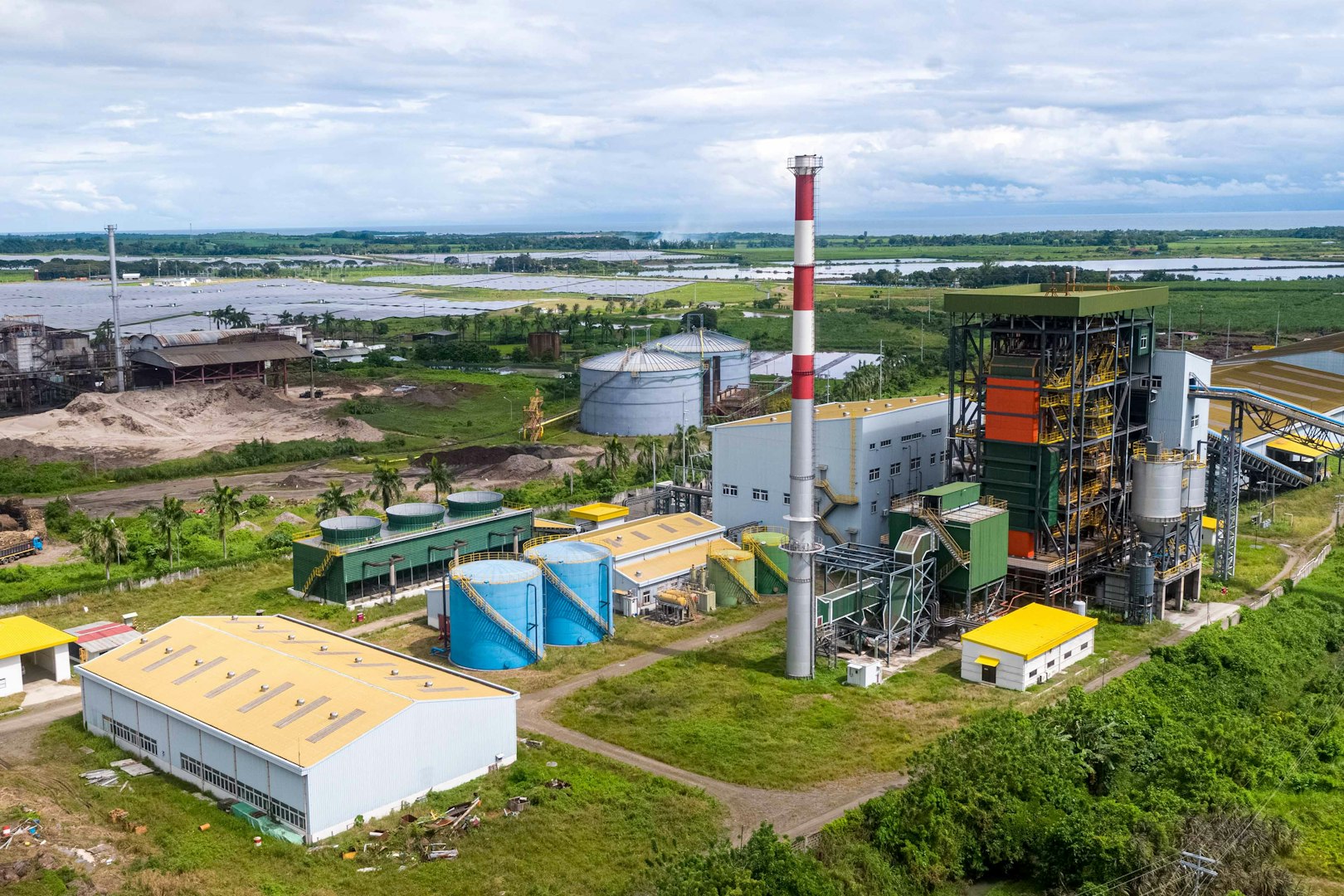

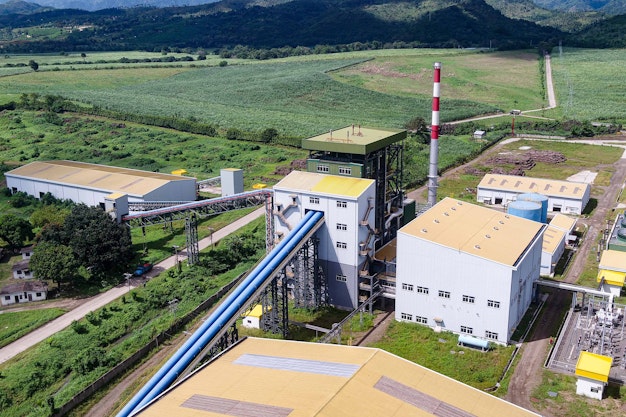

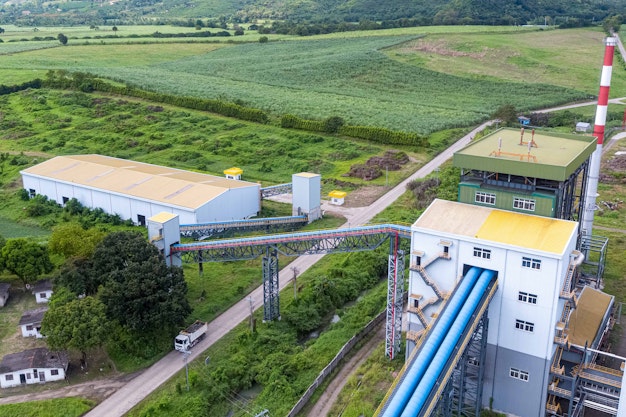

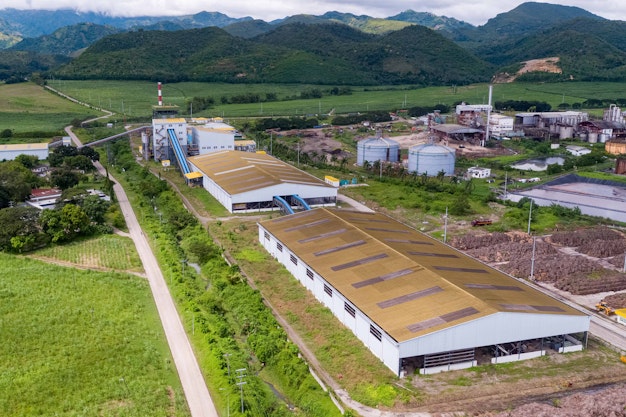

San Carlos BioPower is a biomass power plant project in San Carlos City in Negros Occidental province in the Philippines.

The San Carlos BioPower stand-alone base-load power plant project has a gross power generation capacity of 20 MW and generates approx. 141 million kWh annually. This is equivalent to the energy consumption of around 212,000 people in the region. The biomass power plant using uses as fuel crop residues from local agriculture, e.g. sugar cane leaves and stalks as well as coconut shells, rice husks and specially cultivated energy crops.

UN SDG Alignment

Project overview

Location

Philippines

Capacity

20 MW

Project size

210,000 m²

Impact

Construction jobs created

526

Electricity reach (people)

161,650

New permanent jobs created

475

CO2 avoidance (tonnes p.a.)

103,269

Project details

Location
San Carlos City, Negros, Philippines
Biomass feedstock

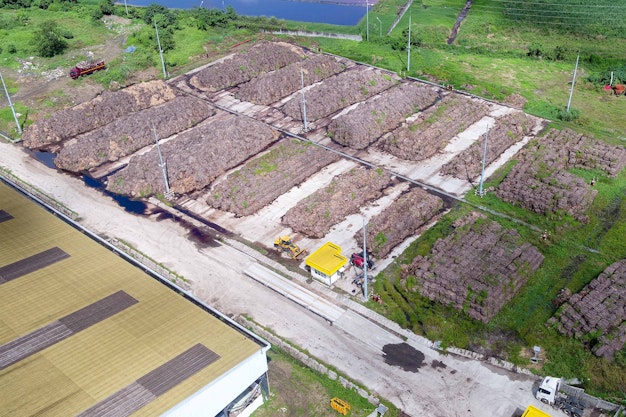

• Type: primarily cane trash with some grassy and woody energy crop plants (ECP) • Utilisation: 170,000 tonnes per year • Availability: 1.1 million tonnes per year of biomass are available within a 80 km-radius catchment area
Supplier/manufacturer

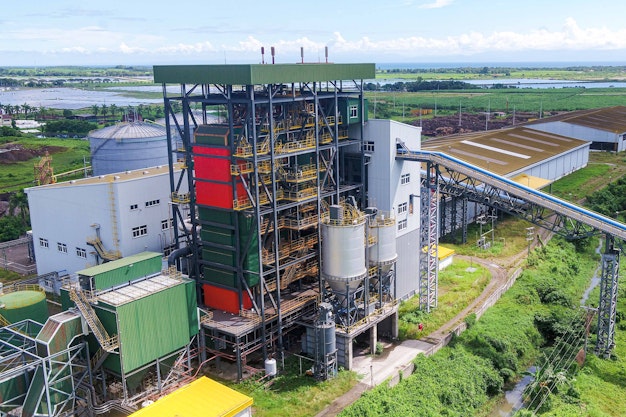

Boiler: Wuxi Huaguang Boiler (China); Turbine: Hangzhou Steam Turbine (China); Generator: Shangdong Jinan Power Equipment (China); Motors: Regal Rexnord (India); Transmitters: ABB (Switzerland); Pneumatic control valve/actuator: Nihon Koso (China); Boiler feedwater pumps: KSB Shanghai Pump (China); Gearboxes: Siemens (Germany); Cane trash shredder: Zhengzhou GEP Ecotech (China); Tractors: Massey Ferguson (Thailand); Forage wagons, rotary rakes: Pöttinger (Austria); V rakes: Hodge Industries (Australia); Baler: Nantong Cotton Machinery (China)
General contractor (EPC)
Wuxi Huaguang Power Systems
Operations & maintenance
Afry Philippines
Insurer (coverage ratio)
• Industrial all risk insurance: Malayan Insurance (30%), Pioneer Insurance and Surety Corporation (25%), FPG Insurance (15%), Cocogen Insurance (12.5%), BPI/MS Insurance (12.5%), Mercantile Insurance (5%) • Property all risk insurance: FPG Insurance (100%) • Contractors equipment insurance: AIG Philippines Insurance (100%) • Comprehensive insurance: FPG Insurance (100%) • Comprehensive general liability: Starr International Insurance Philippines (100%)
Status
In operational phase since January 2020

Related projects

All projects

South Negros BioPower

biomass plant
Location: La Carlota City, Negros, Philippines

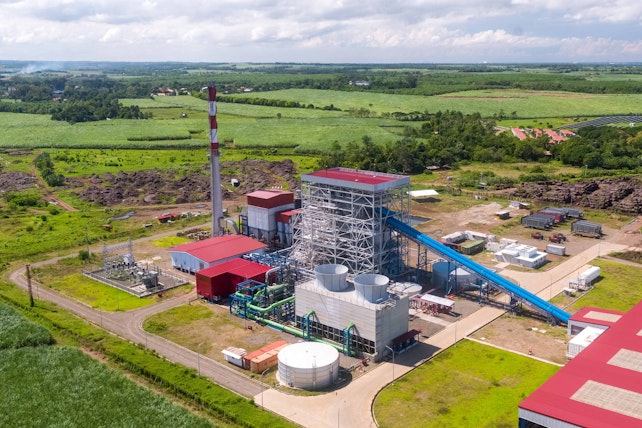

North Negros BioPower
